NEO iDSD Performance Edition

The NEO now comes with the iPurifier3 and S/PDIF iPurifier2 for even greater clarity

The NEO iDSD is our new 3-in-one DAC/amp. Since release we’ve made some upgrades to the original version to create the NEO iDSD Performance Edition.

With balanced ‘PureWave’ circuitry, unbeatable hi-res Bluetooth5.1 and MQA, the NEO is the ultimate in hi-res playback.

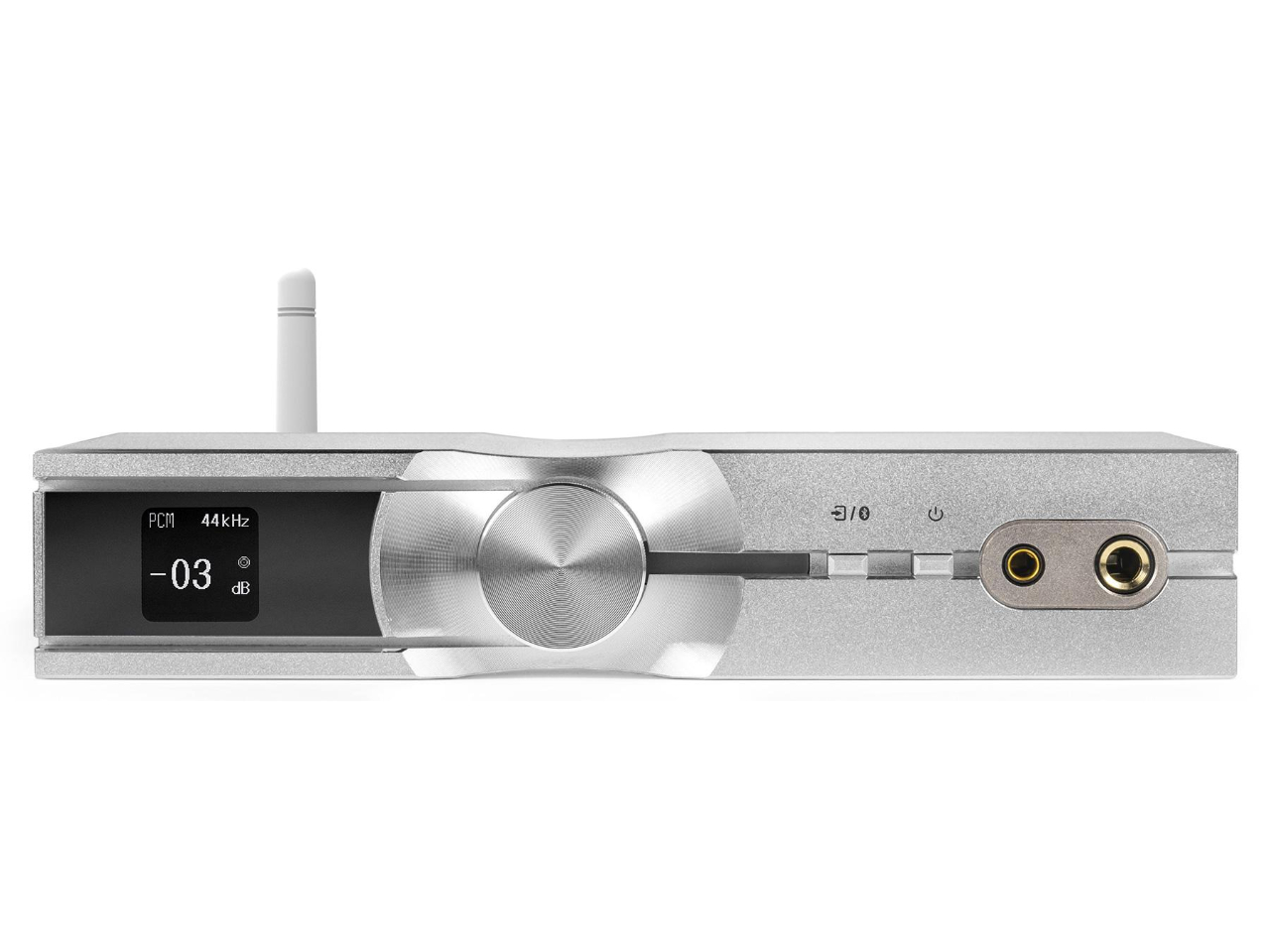

Place it horizontally or vertically to suit its surroundings. The OLED display flips to match orientation and the latest firmware provides a highly requested ‘Display Dim’ function.

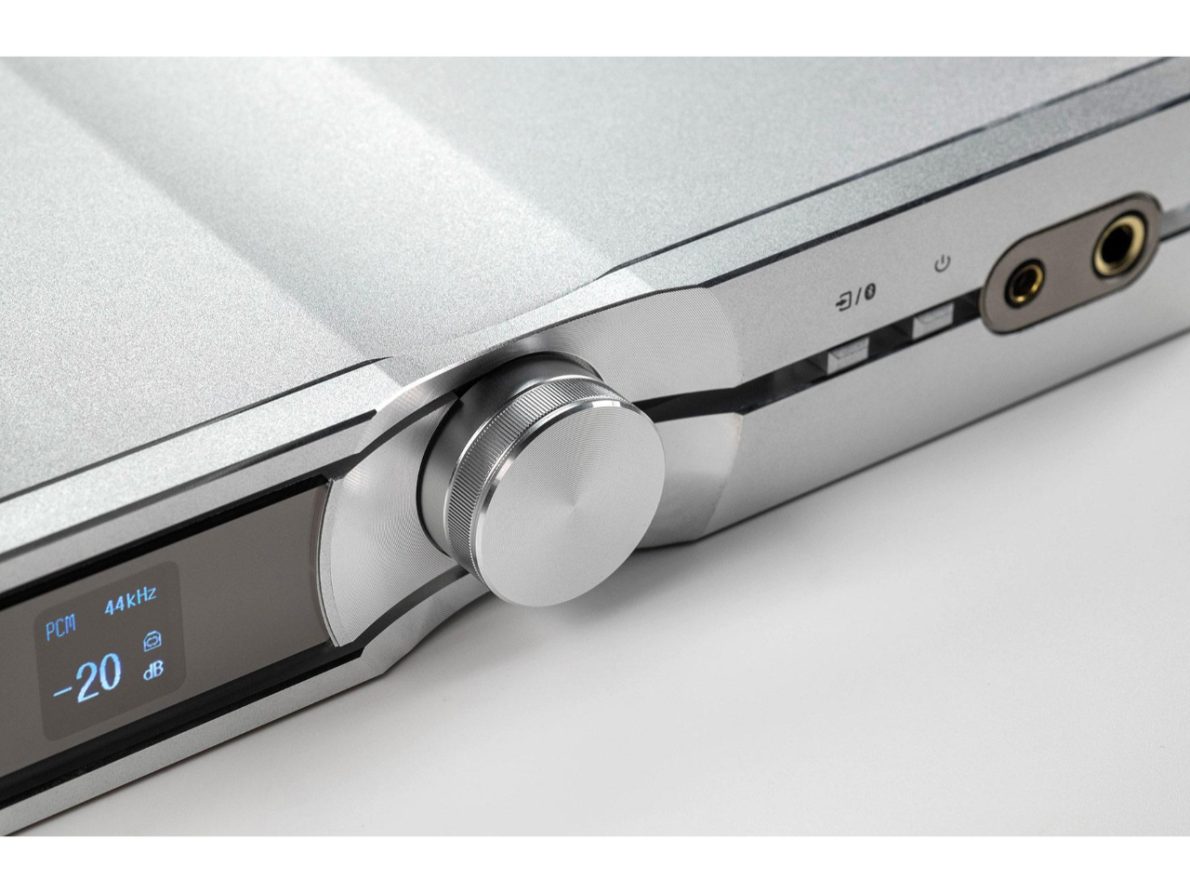

One rotary knob controls functionality. Sleek, sophisticated and versatile.

The Technology

The Burr-Brown True Native® chipset means file formats remain unchanged or ‘bit-perfect’. This means you are listening to music as the artist intended in the format in which it was recorded.

At iFi we use Burr Brown extensively in our products having selected it for its natural-sounding ‘musicality’ and True Native architecture. Our experience with this IC means we know how to make the most of it.

Hi-res audio support is state-of-the-art with True Native® playback. It handles PCM data to 32-bit/768kHz, DSD up to DSD512 and single and double speed DXD.

Thanks to the Burr-Brown DAC chip’s four-channel True Native design, PCM and DSD take separate pathways – this enables DSD, as well as PCM, to remain ‘bit-perfect’ in its native form right through to analogue conversion. This is not the case with all DAC devices from other brands – even if DSD compatibility is stated, many such DACs convert DSD signals to PCM.

The XMOS 16-Core chip processes the audio data received via the USB* digital input.

This new low-latency XMOS microcontroller has greatly enhanced processing power. Compared to the current generation of eight-core chips, this new 16-core IC delivers double the clock speed (2000MIPS) and four times the memory (512KB), as well as the latest SuperSpeed USB standard.

iFi’s in-house digital development team has programmed the XMOS firmware to optimise sound quality and ensure a perfect partnership with the Burr-Brown DAC.

(* Also on S/PDIF on the NEO iDSD/Diablo)

MQA (Master Quality Authenticated) is supported through the USB with full decoding of MQA files up to 384kHz thanks to the processing power of the new 16-core XMOS chip.

Check out how to set up your MQA decoder via Tidal, Roon and Audirvana here.

This means that the full ‘three unfold’ decoding process is performed internally, as opposed to only the final unfold in the manner of an MQA ‘renderer’.

Globally, MQA has become an important consideration for any comprehensively equipped DAC. It is available through for Tidal Masters, Audirvana and Roon.

We use Qualcomm’s new QCC5100 Bluetooth processing IC in combination with proprietary circuits to create an audibly superior ‘Bluetooth engine’.

All the current high-definition Bluetooth audio formats are supported – Qualcomm’s aptX Adaptive and aptX HD, Sony’s LDAC and HWA’s LHDC, regular aptX and aptX Low Latency, AAC (Apple iOS devices) and SBC (the ‘plain vanilla’ Bluetooth codec).

Of the 24-bit-capable codecs, aptX Adaptive and aptX HD support up to 48kHz, while LDAC and LHDC reach 96kHz.

iFi’s ‘Bluetooth engine’ can also be updated over-the-air, so future codecs may be added.

Extensive jitter-eradication technologies are applied to the digital stage, including our GMT (Global Master Timing) femto-precision clock and intelligent memory buffer. This represents a total ‘out-of-the-box’ systematic digital solution that solves jitter once and for all.

Balanced, differential analogue circuit design has long been championed for its ability to reduce noise and cross-talk within the signal path by fully separating the left and right channels.

PureWave is a new, balanced, symmetrical dual-mono topology with short, direct signal paths. The name refers to the sonic purity it achieves thanks to exceptional linearity and infinitesimally low levels of noise and distortion.

As with many other iFi audio products, we’ve incorporated a custom OV Series operational-amplifier. This top-notch component contributes to the extremely low noise, low distortion (0.0001%) and wide bandwidth.

Switching between settings has been engineered to ensure sonic transparency with advanced trench technology MOSFET is used as a muting switch.

This FET-based switching is handled by a micro-controller, which only ‘wakes up’ when the user changes a setting, thus eradicating any sonically deleterious interference.

TDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications.

Getting ever closer to the theoretical ideal of pure, frequency-constant capacitance, these capacitors reduce capacitor-induced distortion to vanishingly low levels.

They are pricey but are a perfect addition to our products.

Extensive jitter-eradication technologies are applied to the digital stage, including our GMT (Global Master Timing) femto-precision clock and the intelligent memory buffer.

The low-jitter crystal clock has been updated to provide >20dB better performance

muRata control-type, low-ESR high-Q multi-layer capacitors. The ‘ESR control’ aspect of the Murata is something special. Their noise suppression abilities are impressive.

Texas Instruments low-noise ICs offer great unity-gain bandwidth, very low noise and distortion, high output drive capability, Common-mode and Power Supply Rejection Ratios of over 100 dB, wide maximum-output-swing bandwidths and high slew rates.

Tekniset tiedot:

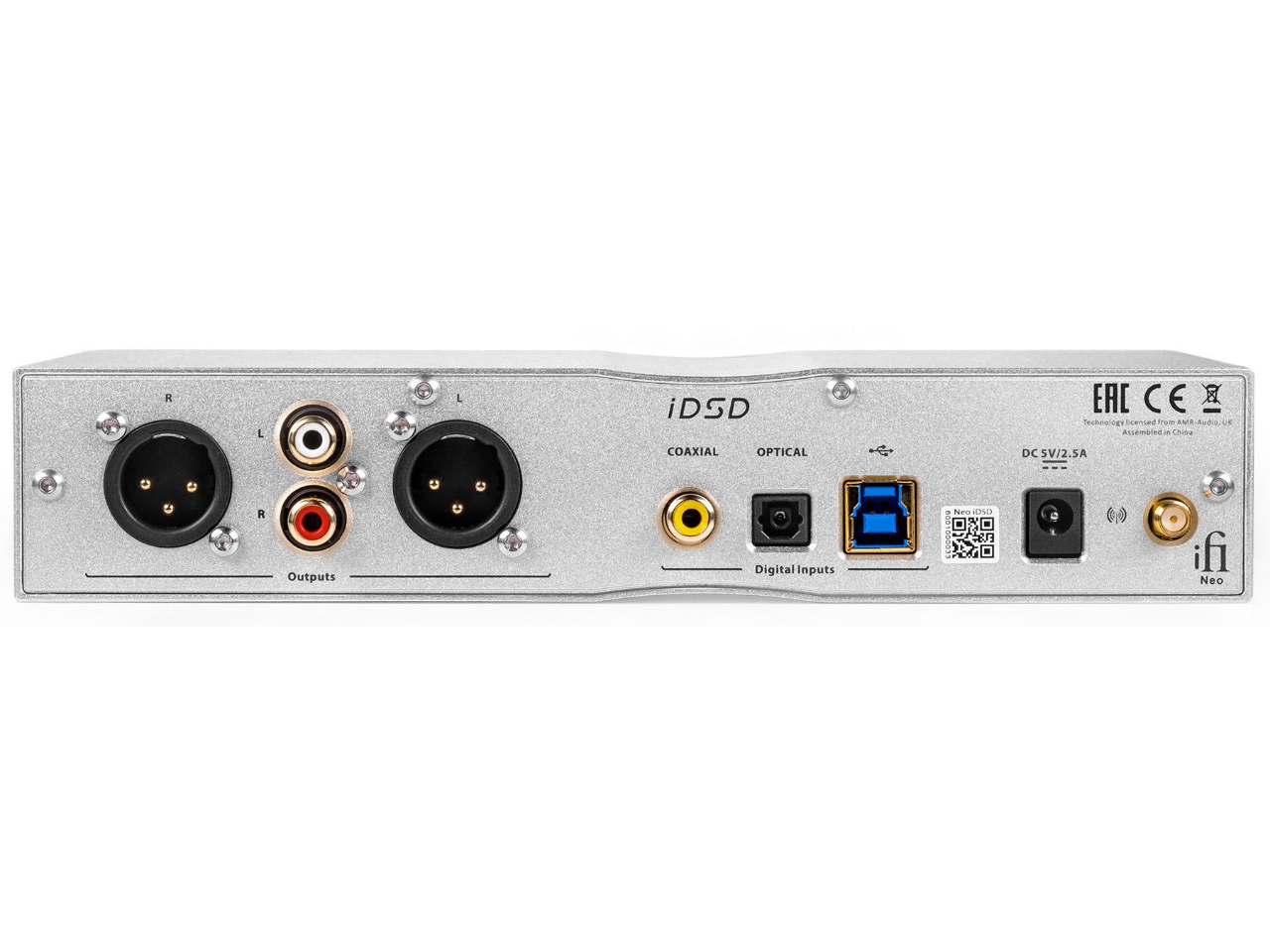

Annot XLR, RCA, 6.35mm ja BAL 4.4mm
Otot: Toslink, S/PDIF, USB ja langaton
Tuetut formaatit: DSD512/256/128/64, MQA, DXD768/705.6/384/352.8, PCM: 768/705.6/384…
SNR: -112dB (A-weighted)
DNR: >116dB (A-weighted)
THD + N: <0.0015%
Antoimpedanssi (kuulokeliitäntä): <1Ω
Teho (BAL/SE): 5.77V/1040mW (32Ω), 3V/295mW (32Ω) (kuulokeliitäntä)
Mitat (L x K x S): 214 x 41 x 146 mm
Paino: 970 g
